4.2.5 Bar Gauge
4.2.5.1 Overview
The Bar Gauge displays a value as a filled bar against a configurable scale, similar to a thermometer or progress bar. Color thresholds along the bar visually segment the scale into zones, making it easy to see how far into a range a value has progressed.
Multiple metrics render as multiple bars stacked in the panel, making the Bar Gauge effective for comparing several similar measurements side by side.
4.2.5.2 When to Use
Use the Bar Gauge when:
- You want a linear fill metaphor rather than a circular dial
- You are showing capacity utilization, fill levels, or completion percentages
- You need to compare multiple similar measurements (e.g., fill levels across several tanks) in a compact layout
- A progress-bar visual is more intuitive for your audience than a needle gauge
For a single large numeric value without a scale reference, use the Stat Value panel. For a dial-style gauge, use the Gauge Chart.
4.2.5.3 Configuration

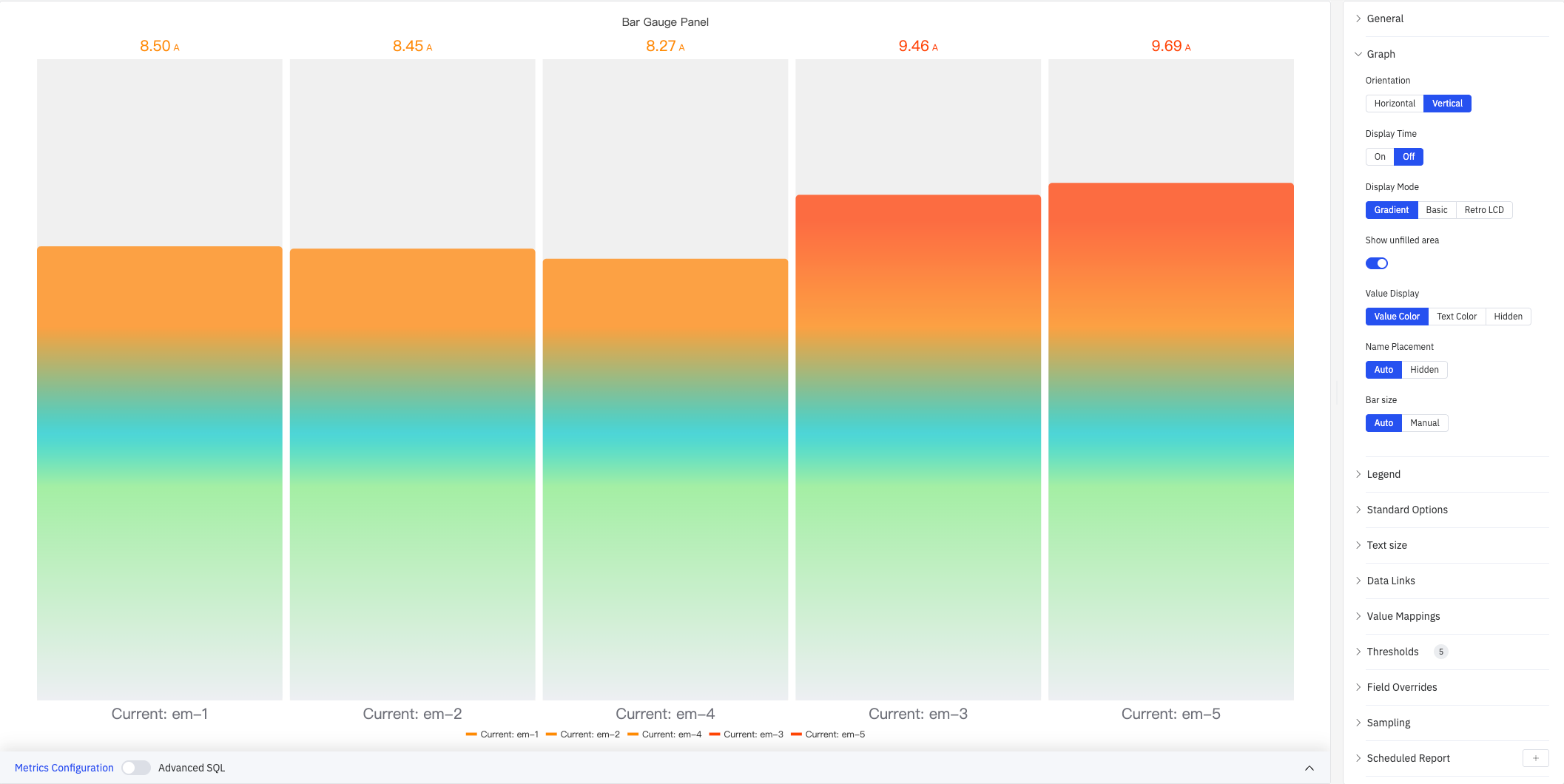

Edit Mode Toolbar
In addition to the common edit mode controls, the Bar Gauge adds:
| Control | Description |
|---|---|
| Save as Image | Download the current preview as a PNG image |
| Full Screen | Expand the editor preview to fill the browser window |
| Panel Insights | Run AI analysis on the current preview data |

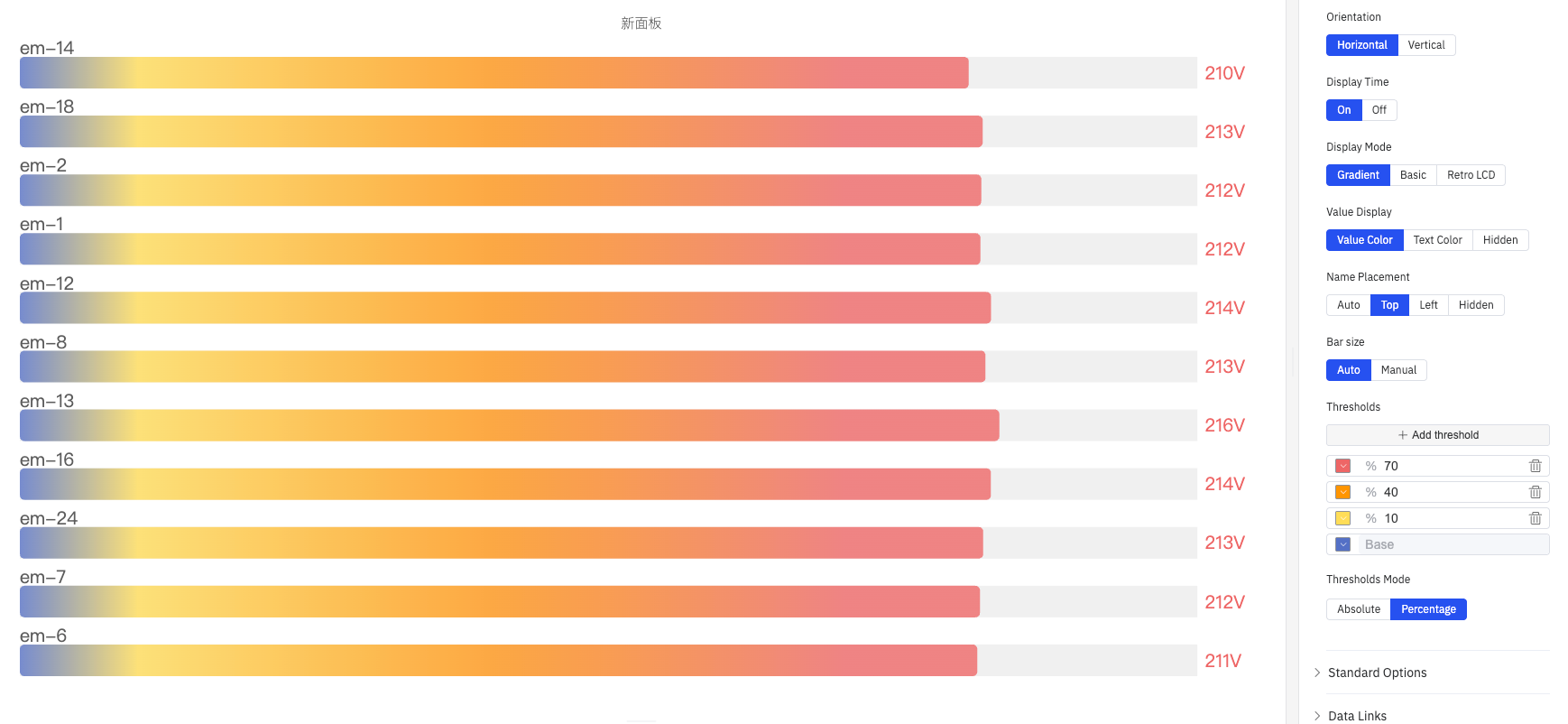

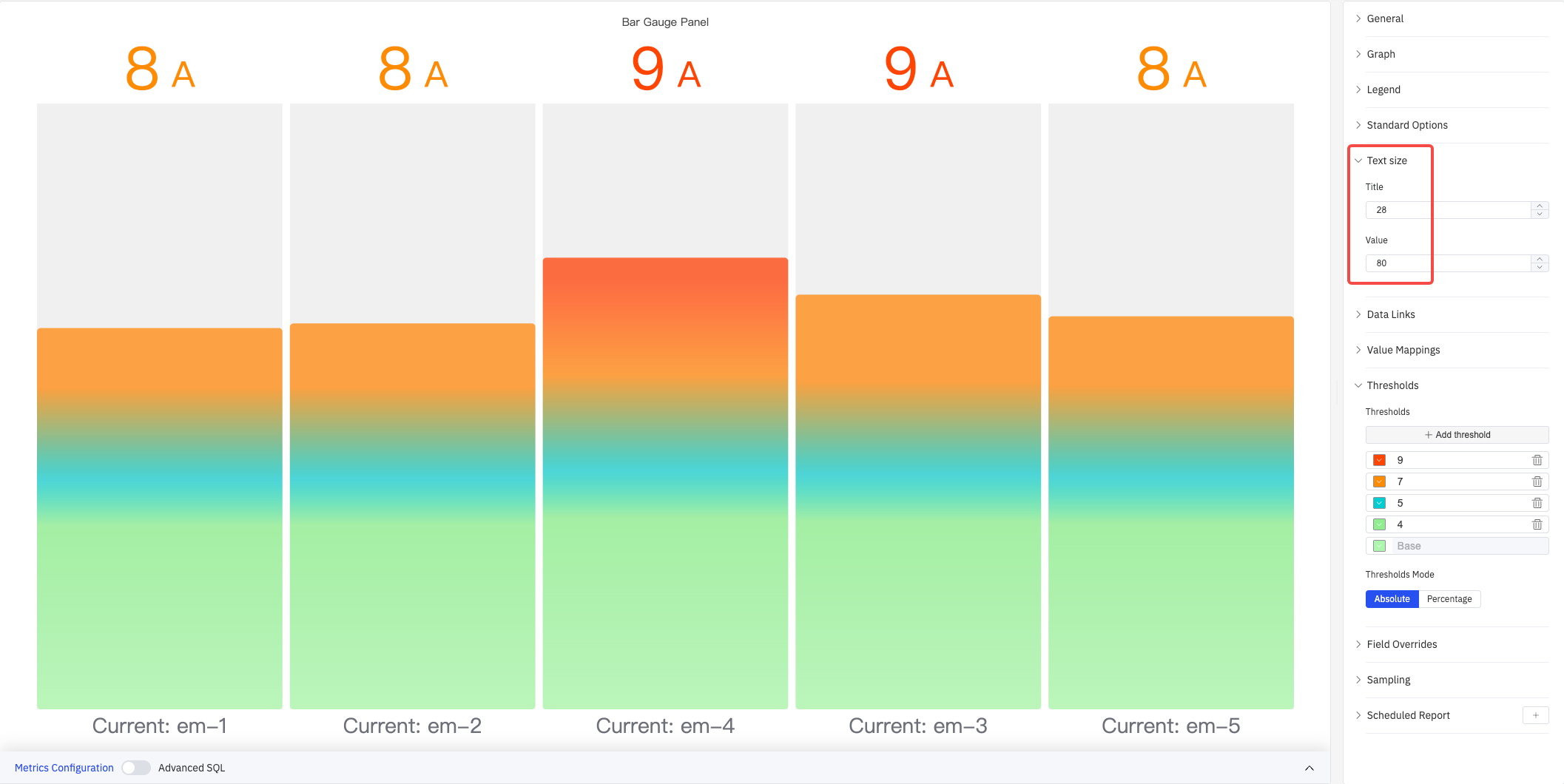

Graph Settings
| Setting | Description |
|---|---|
| Title | Chart title |
| Subtitle | Secondary title |
| Orientation | Horizontal (bar fills left to right) or Vertical (bar fills bottom to top) |
| Show Time | On (display a timestamp on the bar) or Off |
| Display Mode | Visual style: Gradient (smooth color transition), Basic (solid fill), Retro LCD (segmented display) |
| Value Display | Numeric value color style: Data Color (overlaid on bar, colored to match threshold), Text Color (overlaid, plain text), Hidden |
| Name Placement | Metric name position: Auto, Top, Left, or Hidden |
| Bar Size | Auto (bar fills available space) or Manual (fixed pixel size) |
| Min | Minimum value of the scale (default 0) |
| Max | Maximum value of the scale (default 1) |
| Decimals | Number of decimal places shown |
Display Mode

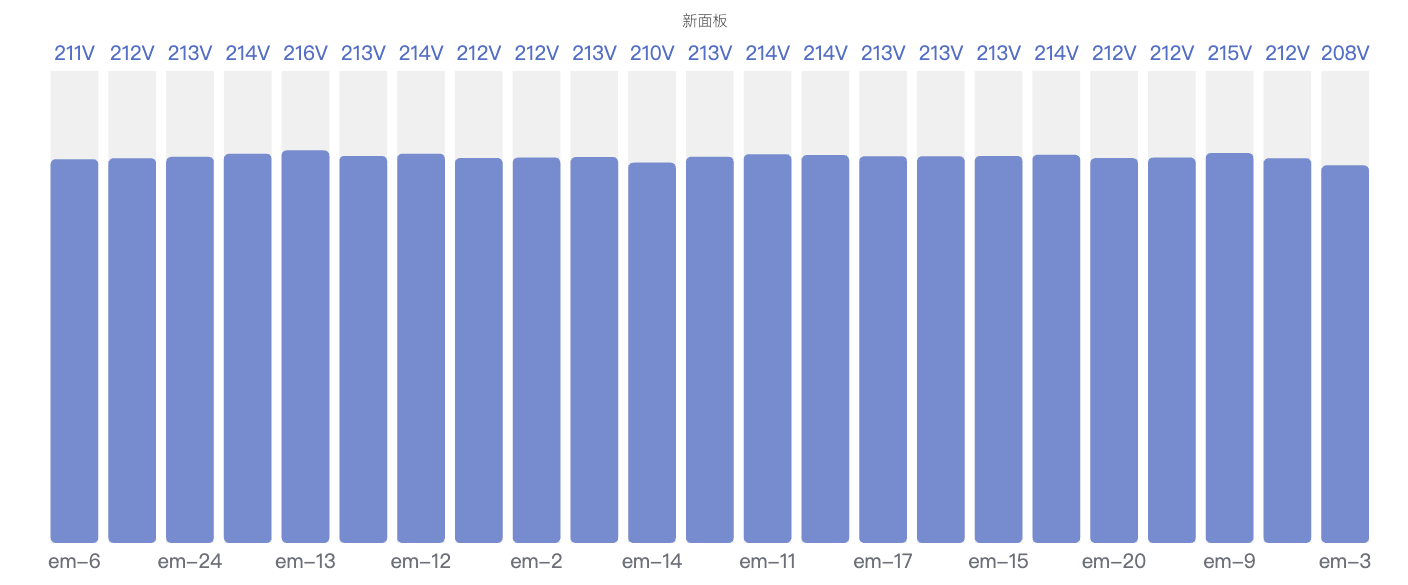

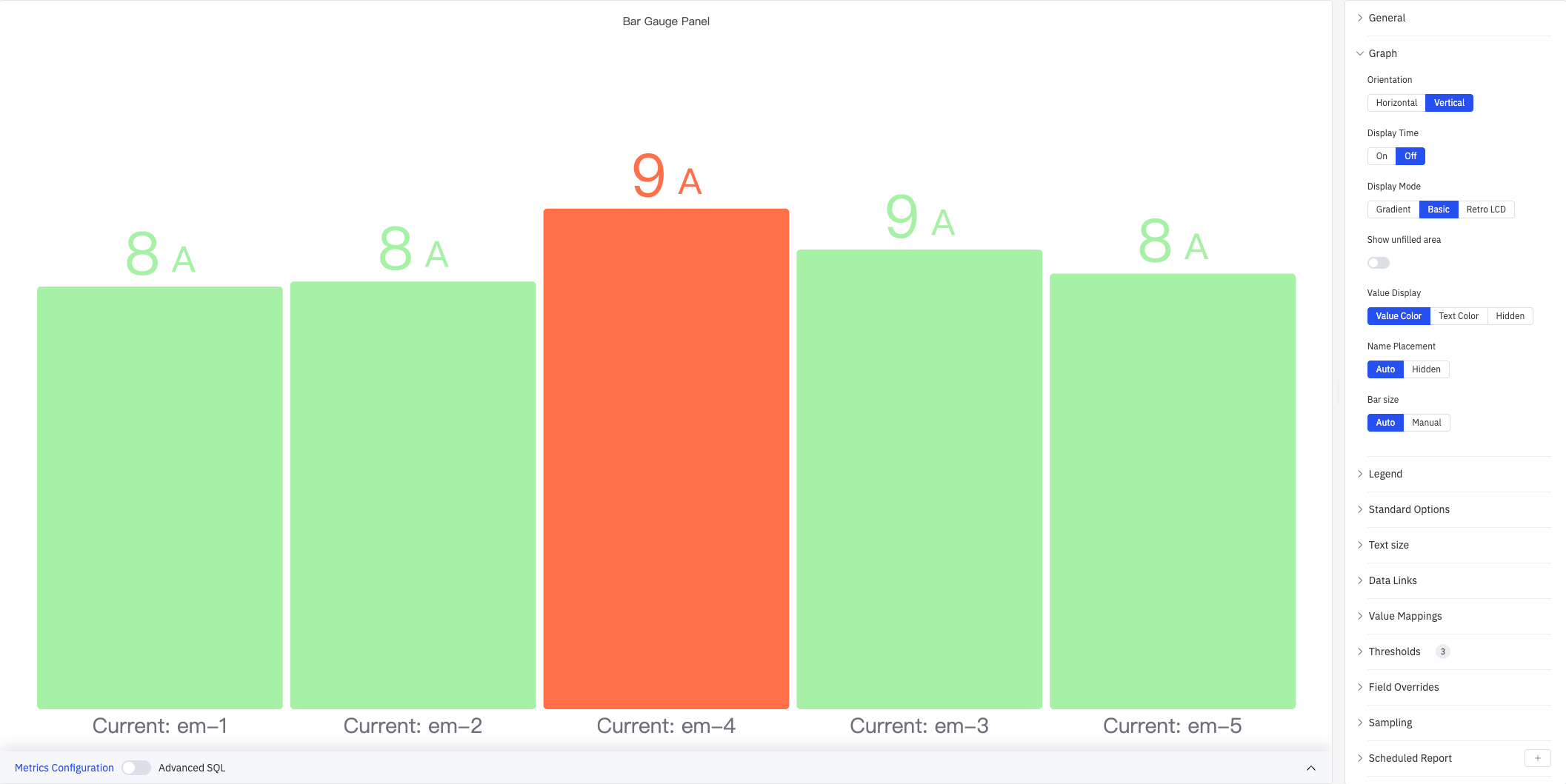

Basic fills each bar with a single solid color determined by the current threshold band, resulting in a clean and minimal look.

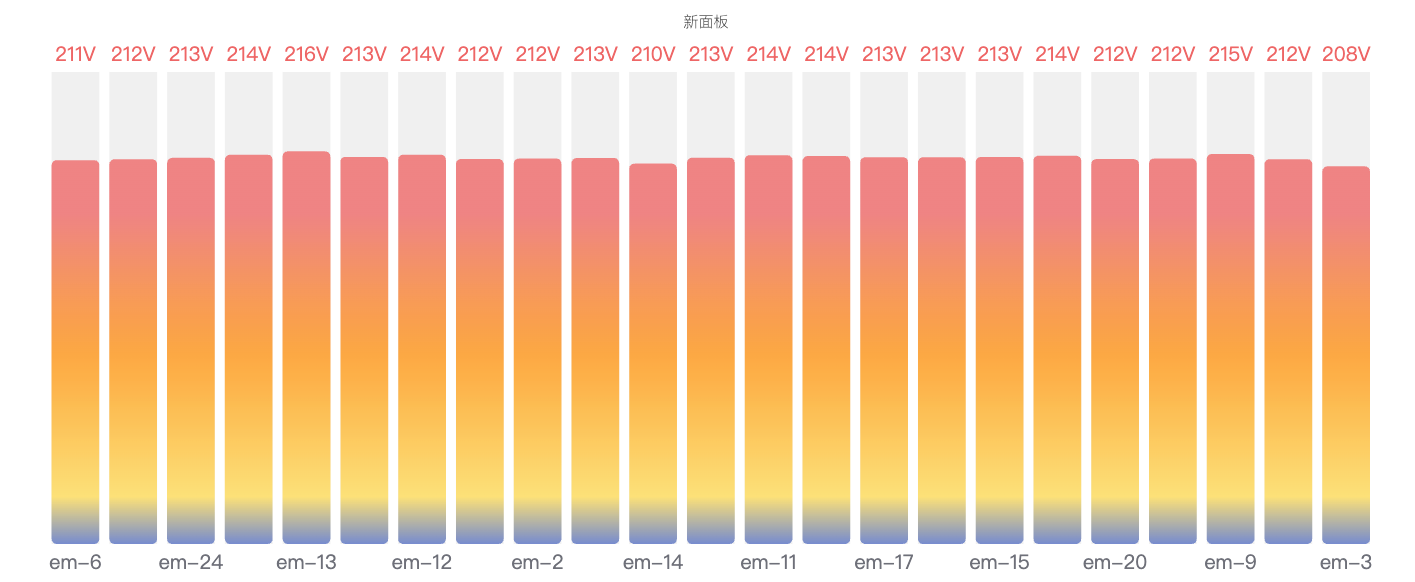

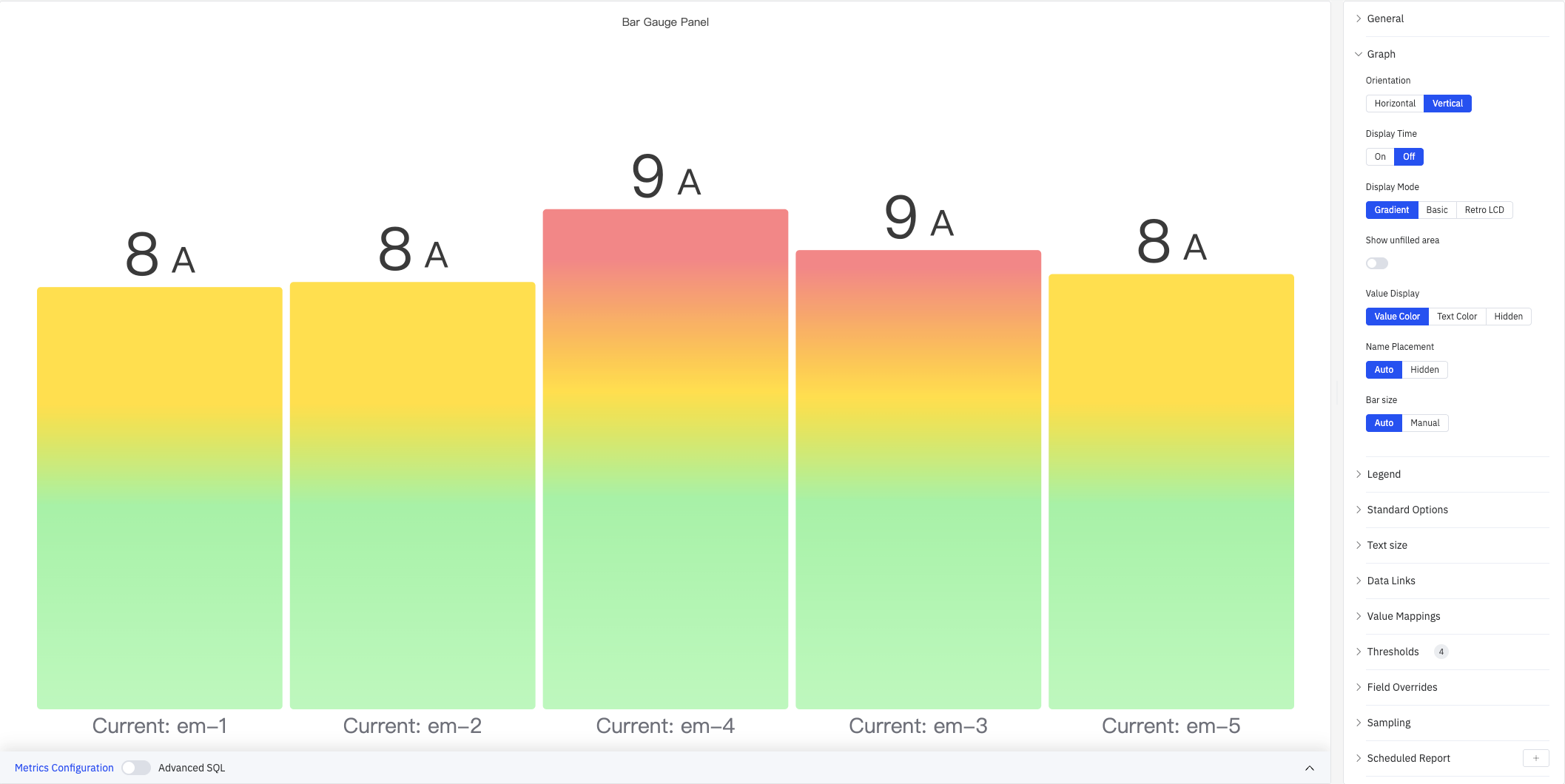

Gradient renders a smooth color transition from the low end to the high end of the bar, simultaneously conveying both the value magnitude and its position relative to thresholds.

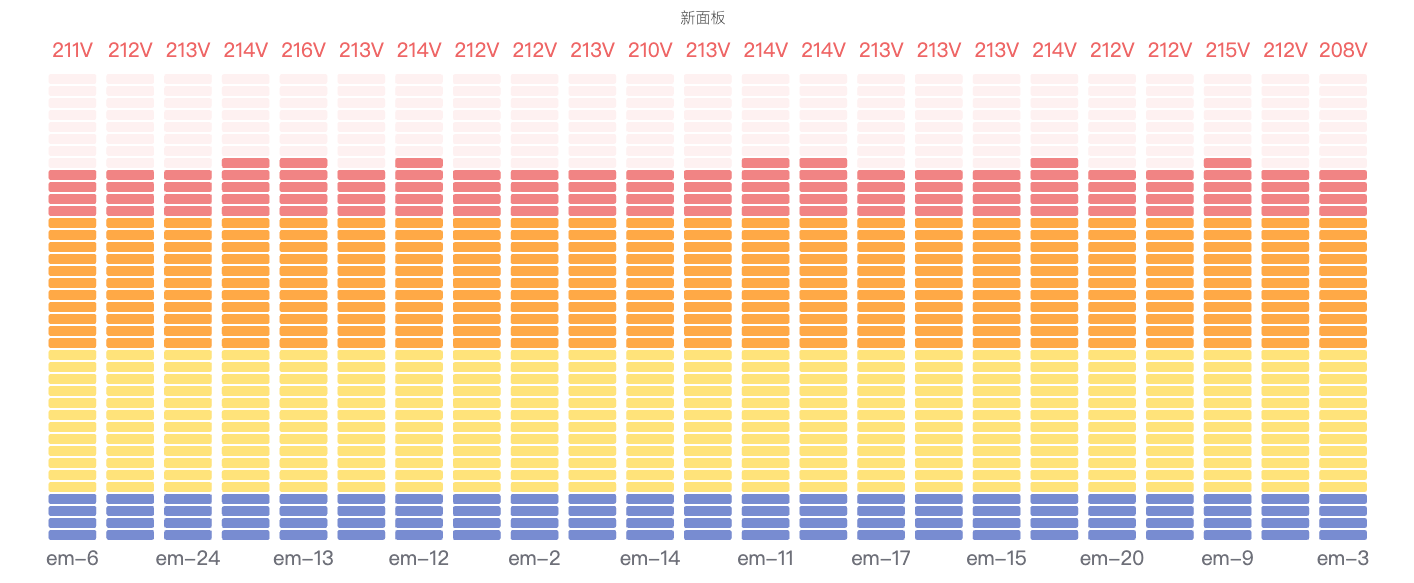

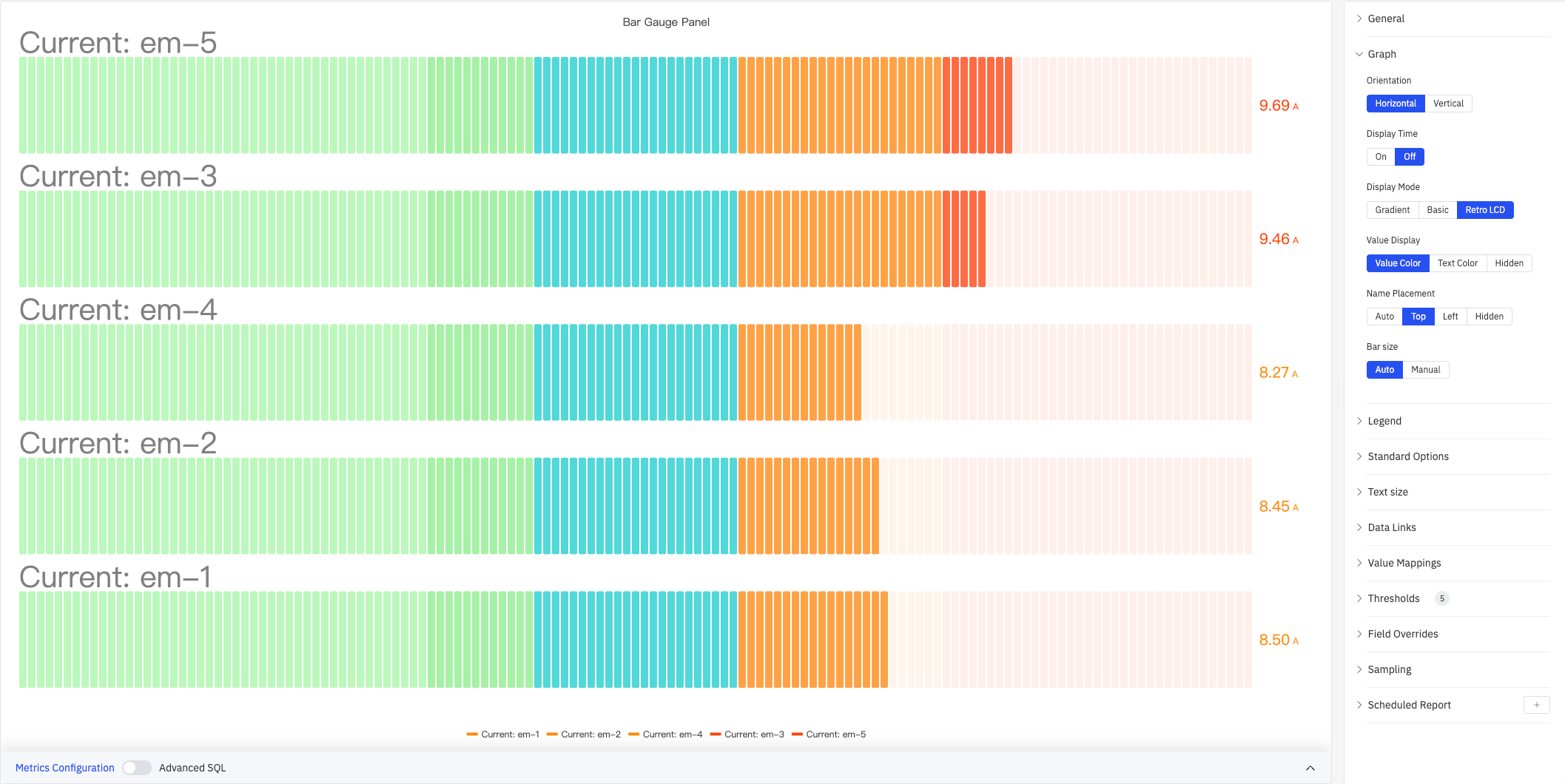

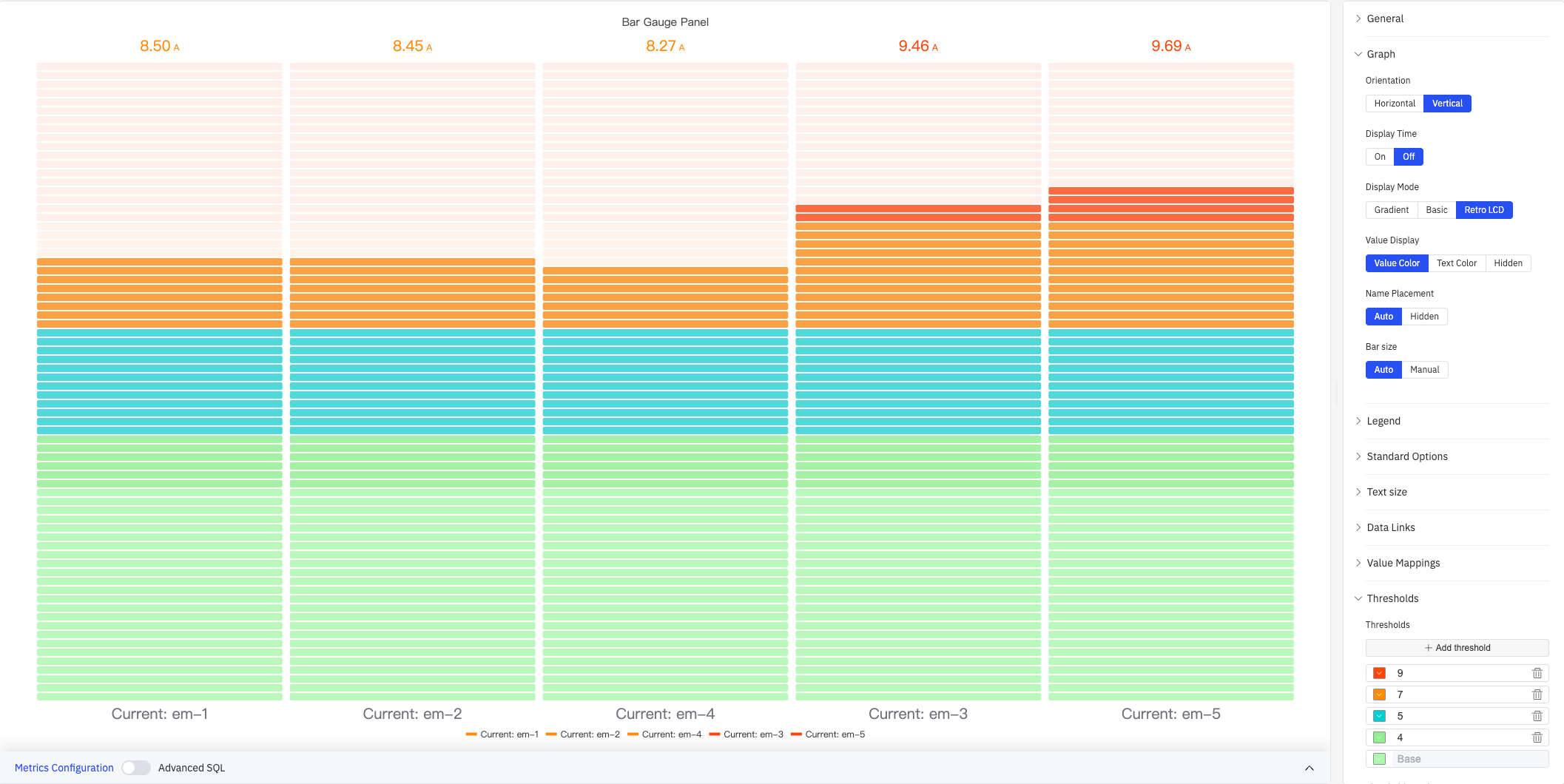

Retro LCD splits the bar into discrete segments that mimic the appearance of a liquid-crystal display, suited for dashboards with an industrial instrument aesthetic.
Thresholds
Thresholds define color bands along the bar. Each threshold specifies a value and a color; the bar changes color as the value crosses each boundary:
| Setting | Description |
|---|---|
| Thresholds | Click + Add threshold to define a boundary value and its color |
| Thresholds Mode | Absolute (threshold values are raw data values) or Percentage (threshold values are percentages of the Min–Max range) |
4.2.5.4 Example Scenarios
Tank fill levels. Five storage tanks each have a fill-level metric. All five are added to a single Bar Gauge panel with Horizontal orientation. Thresholds at 20% (red), 50% (yellow), and 80% (green) give operators an instant view of which tanks need attention.
Capacity utilization comparison. Three production lines contribute their hourly throughput as metrics. The Bar Gauge shows each line's utilization against a 100% maximum, with Gradient display mode providing a smooth color shift from green to red as utilization increases.
Battery state of charge. A battery storage system's state of charge is displayed with a Vertical bar gauge, Min 0% and Max 100%, with Percentage thresholds at 20% (red) and 50% (yellow). The visual immediately communicates how much reserve is available.
